Szczegóły Produktu:
|
| Excavator: | 12~15 ton | Bucket width: | 1800mm |
|---|---|---|---|
| Bucket capacity: | 0.58 cum | Cylinders: | 2pcs |
| Tilt degree: | + / - 45 degree | Weight: | 780 kg |
| cutting edge: | bolted cutting edge | Hose fittings: | BSP 1/4" |
| Warranty: | 6 months | Material: | Q345B+NM400 |
| High Light: | hydraulic tilt bucket,power tilt excavator attachment,Double Cylinder Power Tilt Excavator Attachment |
||

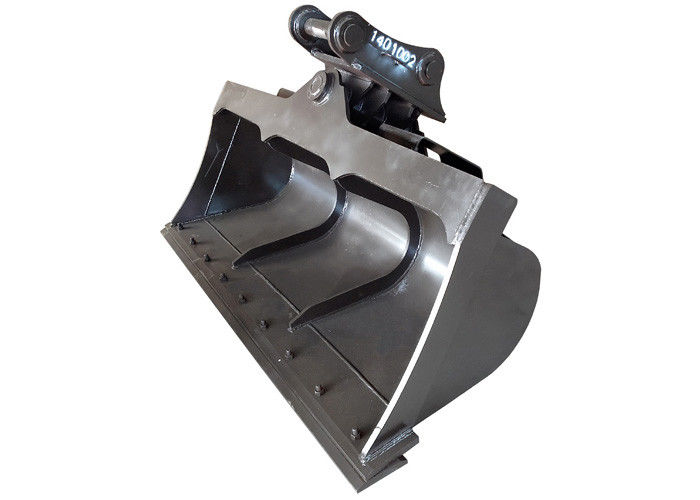

1800mm Width Power Tilt Excavator Attachment Double Cylinder Q345B NM400 Material
Tilt bucket mainly for excavating & removing soft soil,sand;material handling,cleanning,etc Our company can customize all kinds of tilt bucket according customer requirements.
Specification of our series tilt bucket:
| Model | HK-LTB20 | HK-LTB30 | HK-LTB60 | HK-LTB120 | HK-LTB200 | HK-LTB300 |
| Bucket width | 850 mm | 1200 mm | 1500 mm | 1800 mm | 2000 mm | 2200 mm |
| Weight | 160 kg | 220 kg | 365 kg | 780 kg | 1020 kg | 1530 kg |
| Cylinder | 1 pcs | 1 pcs | 2 pcs | 2 pcs | 2 pcs | 2 pcs |
| Max Tilt Degree | + / - 40 | + / - 45 | + / - 45 | + / - 45 | + / - 45 | + / - 45 |
| Bucket capacity | 0.09 cum | 0.12 cum | 0.29 cum | 0.58 cum | 0.97 cum | 1.45 cum |
| Excavator tonnage | 1.5~2.9 ton | 3~5 ton | 6~10 ton | 11~16 ton | 18~25 ton | 26~35 ton |
| Hose fittings | BSP 1/4" | BSP 1/4" | BSP 1/4" | BSP 1/4" | BSP 1/4" | BSP 1/4" |
If have specical requirements,such as different width,different bucket capacity,we can design and customize for you.

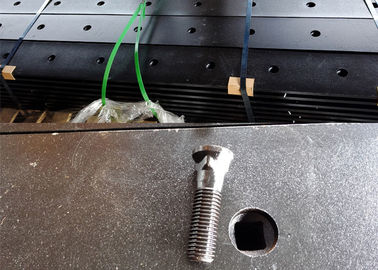

-Bolted cutting edge is no problem,bolt is plow bolt,easy for changing to another side or replacing a new one.
